Block Editor Viewport
The Block Editor has a filtered set of the full options available in the Modeler.
役に立ちましたか？
クリエイターページ
The Block Editor has a filtered set of the full options available in the Modeler.
役に立ちましたか？

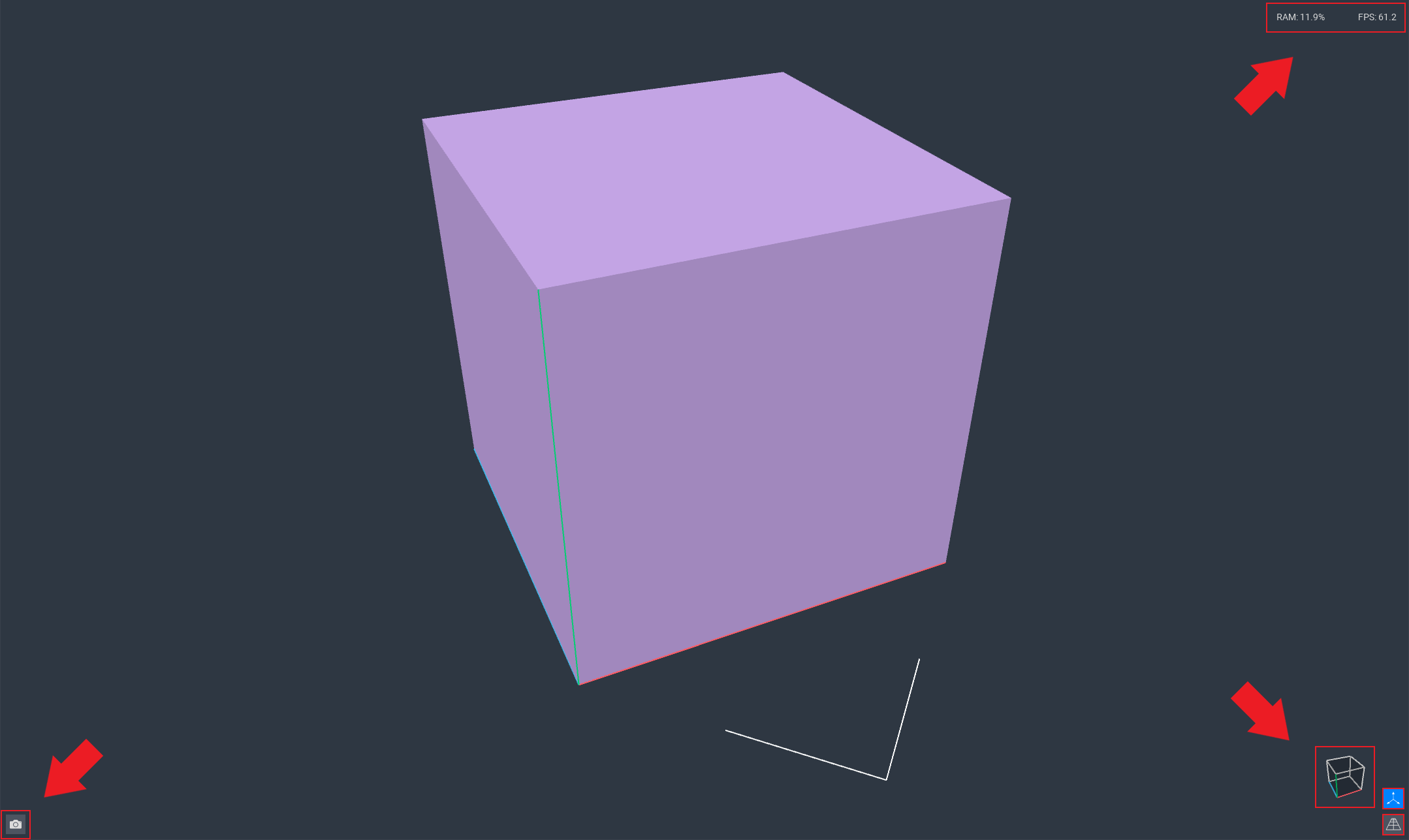

The Block Editor viewport includes performance data for your device in the top right, a screenshot button in the bottom left, and orientation and view tools in the bottom right.
A cube in the bottom right will rotate to match camera movements to make it clear what you're viewing in 3D.
Change the view to 2D by hovering your mouse over a face on this guide to highlight it and then click it to select.
Viewing a block in 2D allows you to see how the selected face appears when tiled next to itself.
Return to the 3D view from a corner perspective by hovering the mouse over a corner and clicking it.
Default view
Hover mouse to select
When a face is selected
Hover and click a corner
Use the Reset View button in the Top Bar or press the F key to focus the camera on the default view again.
See for more information about VoxEdit's camera controls.
Screenshot Create an image of the current view in the Workspace in .PNG format with a transparent background. Adjust your camera position if needed.
Show/Hide Axes Toggle on and off the axes guide and the white arrow indicator pointing to the front of your block or model.
Toggle Camera Perspective/Orthographic Switch between perspective and orthographic views of the 3D view of your project.
